Lub ntsej muag cov ntaub so ntswg packing tshuab

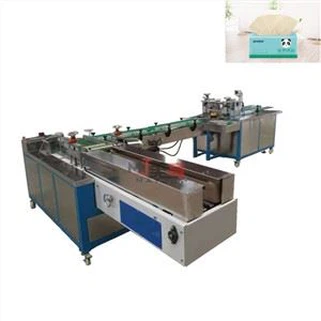

MJ-T300V kev kub ceev tag nrho tsis siv neeg lub ntsej muag cov ntaub so ntswg ib lub tshuab wrapping / packing tshuab yog tsim rau cia li ntim V / M quav ntsej muag ntaub so ntswg, daim ntaub so ntswg thiab pav ca.
Kev npaj daim ntawv, pub mis, ntim, txav mus tom ntej, ntawv hooking, pusher, zaj duab xis rub, txiav riam, nias, txav sealing, qis inserting zaj duab xis, movable ntug qhia, viav vias ironing thiab intermediate feeding yog tag nrho cov servo-tsav tswj txoj kev. Nws muaj qhov zoo ntawm kev ua tiav kev ua haujlwm kev teeb tsa, kev siv siab ua haujlwm, kev ua haujlwm yooj yim, ntau yam kev hloov kho, kev hloov pauv ceev ceev, kev saib xyuas yooj yim, thiab siv tus nqi qis.
Kev ua haujlwm yooj yim teeb tsa: Tsis siv neeg cov ntaub so ntswg shaping muaj nuj nqi, tsis siv neeg tshawb pom thiab txo qis kev ua haujlwm ntawm cov ntaub so ntswg cov khoom nkag, tsis siv neeg lub tswb thiab kaw ua haujlwm rau ob-pob pub, tsis siv neeg lub tswb thiab kaw kev ua haujlwm ntawm kev pub pas nrig, tsis siv neeg tshawb pom cov ntaub so ntswg qhov siab thiab Tswb kaw, cov ntaub so ntswg hooking shaping, jog ua haujlwm, txuas kev ua haujlwm muaj nuj nqi
Max. ruaj khov ceev ceev 80 pob / min rau tus qauv loj.
|
Nta |
Kev piav qhia |
Lus ceeb toom |
|
Scope ntawm daim ntawv thov |
Lub hnab ntim zaj duab xis rau lub ntsej muag daim ntaub so ntswg, daim ntaub so ntswg thiab tes phuam |
|
|
Daim ntawv sorting hom |
Tsis Siv Neeg Smart Pub |
|
|
Tsim kev ceev ntau lawm |
Tsawg dua lossis sib npaug li 80 pob / min |
Hais txog ntim loj |
|
ruaj khov ceev ceev |
80 pob / min |
Cov ntaub so ntswg qhov siab: Tsawg dua lossis sib npaug li 100mm, |
|
Tsawg dua lossis sib npaug li 60 pob / min |
Cov ntaub so ntswg qhov siab: Ntau dua lossis sib npaug li 100mm |
|
|
Ntim zaj duab xis hloov |
Tsawg dua los yog sib npaug li 2 min |
Hais txog kev paub thiab kev txawj ntse |
|
Daim ntawv ntev |
120-360 hli |
|
|
Daim ntawv dav |
90-200 hli |
|
|
Daim ntawv qhov siab |
40-170 hli |
|
|
Pwm |
3set ib |
Standard configuration, qhov ntau thiab tsawg yog muab los ntawm buyer. |
|
Tshuab dimension |
L4575mm x W3850mm x H2000mm |
|
|
Tshuab hnyav |
Tsawg dua lossis sib npaug li 4000KG |
|
|
Cov khoom ntim |
Ob chav sab kub foob CPP zaj duab xis |
|
|
Zaj duab xis thickness |
0.035mm -0.05mm |
|
|
Max.film yob txoj kab uas hla |
500 hli |
|
|
Zaj duab xis tub ntxhais txoj kab uas hla |
76mm ua |
Raws li tus txheej txheem thoob ntiaj teb |
|
Max.film dav |
500 hli |
|
|
Compressed cua |
Ntau dua los yog sib npaug rau 0.5mpa,100L/min |
Cov neeg yuav khoom npaj |
|
Fais fab mov |
380V / 50HZ |
Yuav customize |
|
Kev siv hluav taws xob tag nrho |
15.47KW (12.93KW rau lub cev muaj zog thiab 2.54KW rau cov kav dej cua sov) |
|
|
Adaptive voltage hloov |
+/-10% |
|
|
I/O cov tswv yim |
24 VDC |
|
|
I/O tso zis |
24 VDC |
|
|
Tshuab txav hom |
13 shafts servo positioning tswj |
Electric cam txav nkhaus |
|
Main kis tau tus mob hom |
Hluav taws xob cam kis tau tus mob |
|
|
Tshuab xim thiab khoom siv tes ua |
Grey, static hluav taws xob txau txheej khoom siv tes ua |
|
|
Ntim hom |
3D ntim |
Ntim zaj duab xis overlap sealing, txawm rau ob sab |
