Toilet Roll Ua Tshuab

Khoom Taw Qhia

Lub tshuab tso quav dov ua tshuab muaj core feeding unit. Raw khoom los ntawm jumbo yob tom qab tag nrho embossing los yog ntug embossing, ces perforation, kawg txiav thiab tshuaj tsuag tus Tsov tus tw kua nplaum ua ib tug cav. Tom qab ntawd nws tuaj yeem ua haujlwm nrog lub tshuab txiav thiab packing tshuab los ua cov khoom tiav. Lub tshuab yog tswj los ntawm PLC, tib neeg ua haujlwm los ntawm kov npo, tag nrho cov txheej txheem yog tsis siv neeg, yooj yim rau kev khiav lag luam, txo tus txiv neej tus nqi. Thiab Peb lub tshuab tuaj yeem tsim tshwj xeeb raws li cov neeg siv khoom xav tau.

Khoom Parameter

Tshuab Qauv	MJT-1092	MJT-1575	MJT-1760	MJT-1880	MJT-2800	MJT-3500
Ntawv dav (mm)	1300	1800	2000	2200	2800	3500
Peev xwm (ton / hnub)	1 8 hnu	1.5 8 hnu	2 8 hnu	2.5 8 hnu	3 8 hnu	3.5 8 hnu
Ua tiav txoj kab uas hla	φ50 ~ 1800mm (Adjustable dav thiab nruj)
Finish Paper Core	φ30 ~ 55mm
Base Diameter	Nrog 1100mm Standard (Lwm qhov loj yog muaj)
Jumbo Roll Core Diameter	76mm ua National standard (Lwm qhov loj yog muaj)
Txheej Txheem Muaj Peev Xwm	150 ~ 280 M / min
Kev teeb tsa Parameter	PLC lub computer operating system interface
Rov qab Stand	Txheem peb txheej synchronous kis tau tus mob
Perforation Pitch (mm)	2 baldes, 150 ~ 300 hli
Pneumatic System	Lub 3 nees cua compressor, qhov tsawg kawg nkaus siab ntawm 5kg / cm2Pa (tsis suav nrog cov lus hais, feem ntau cov neeg yuav khoom nws tus kheej)
Hwj chim	5.5kw ~ 15kw (Stepless variable ceev)
Qhov ntev	6200 * 2600 * 800mm ~ 6200 * 4000 * 800mm
Qhov hnyav	2500-8800kg

Muaj nuj nqi thiab nta ---Chav dejRoll Ua Tshuab

1) Lub tshuab no yog siv los ua cov ntawv tso quav tso quav. Tag nrho cov qauv yog phab ntsa-mounted, uas ua rau lub tshuab khiav ntawm kev kub ceev thiab tsis muaj suab nrov.

2) Tsis siv neeg cov tub ntxhais xa tuaj, cia li thawb lub cav tom qab rewinding, thiab tom qab ntawd rov ua kom lub cav tshiab.

3) Txais tos thoob ntiaj teb advanced PLC programmable tswj tshuab, txiv neej-tshuab interface ua haujlwm ntawm lub vijtsam kov, cov ntaub ntawv teeb tsa thiab cov khoom tsis raug.

4) 4 high-precision kauv riam nrog lub suab qis, ntshiab perforation thiab ntau yam ntawm gearboxes.

5) Ob chav phab ntsa rear bracket, pneumatic lifting system, broadband tsav ca siv; txhua lub ntim loj tuaj yeem hloov kho ntawm nws tus kheej.

6) Kev ua haujlwm yooj yim thiab nyab xeeb.

Cov lus pom zoo

Toilet paper yob txiav tshuab Toilet paper sealing tshuab

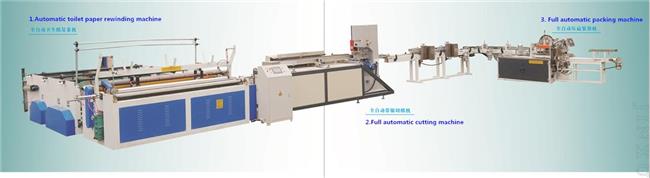

Toilet Roll Making Machine
